Diffuser Selection and Aeration System Design
With the JetFlex® diffusers Jäger Umwelt-Technik GmbH offers efficient and high-quality aeration elements for biological wastewater treatment. Based on 80 years of rubber expertise Jäger remains the industry’s innovation leader for ultrafine bubble diffusers. Reliability, longevity and high oxygen transfer efficiency make Jäger diffusers best in class.
TD Series
The JetFlex® TD is an innovative aeration solution that offers outstanding performance and efficiency. With the cost-effective design, low maintenance and low installation costs, it is ideal for projects with limited budgets and high aeration efficiency requirements. The TD is suitable for continuous and intermittent operation, providing a reliable and durable solution for fine bubble aeration.
Top Facts
Cost-effective design and efficient performance
Easy installation and low maintenance
Continuous and intermittent operation
Flexible length and diameter selection
Adaptable and versatile connection options

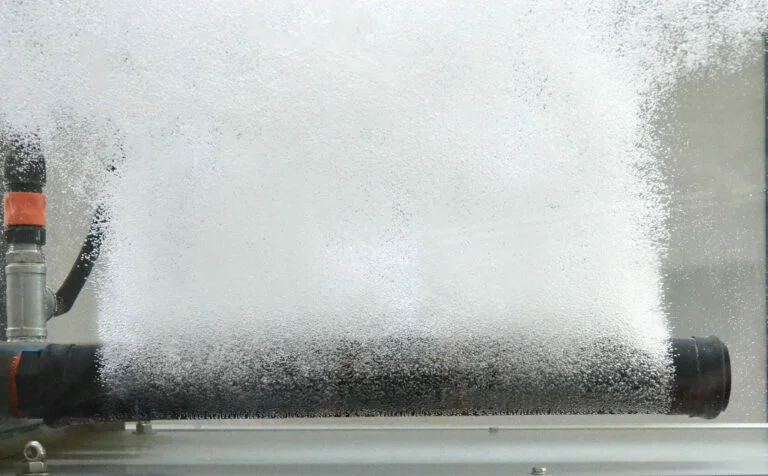

JetFlex TD offers a wide range of benefits that makes it the best-in-class aeration solution. Thanks to our 100% quality control, you can count on consistent quality and high efficiency. With possible diffuser densities of up to 70%, they allow for high overall SORs and provide effective aeration for your facility. Installation is quick and easy, saving time and effort. The tubular geometry makes this diffuser type ideal for liftable aeration grids.
These products are available in three different lengths (0.5 m, 0.75 m and 1 m), providing flexibility for different applications. With two diameters available (90 mm and 65 mm), you can choose the optimal size for your needs. The different slot patterns available allow a targeted adaptation to the specific operating requirements and conditions of your plant.

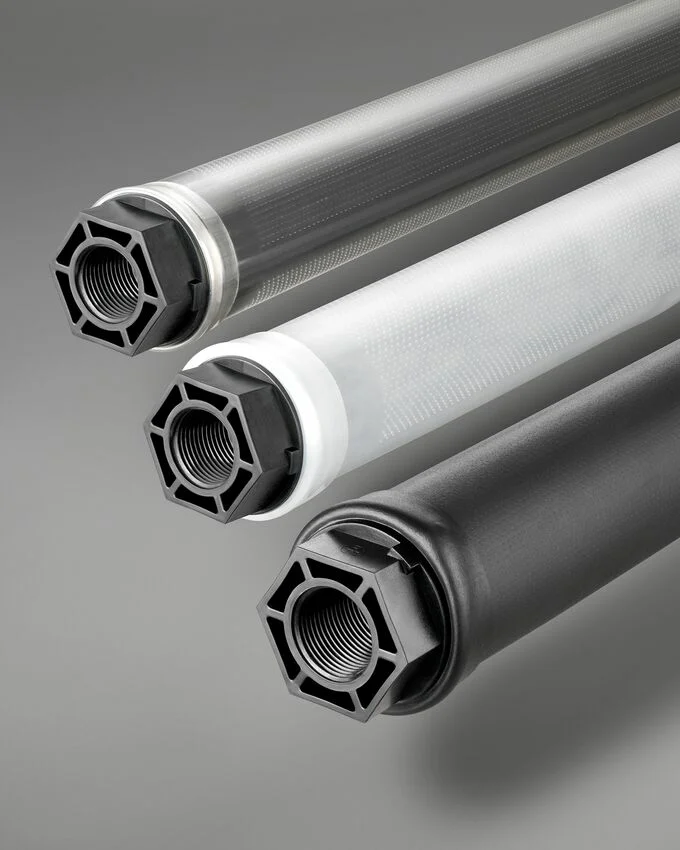

JetFlex TD offers multiple connection options to steel and plastic pipes that allow a flexible adaptation to project specifications. In addition, membrane options EPDM, Silicone and PUR, are available. Developed for a dependable, long-life performance in the classic municipal and industrial applications.
Rely on JetFlex TD to benefit from consistent quality, high efficiency, easy installation, adaptability and multiple connection options. This product provides the reliable and effective aeration solution you need to keep your facility running optimally.

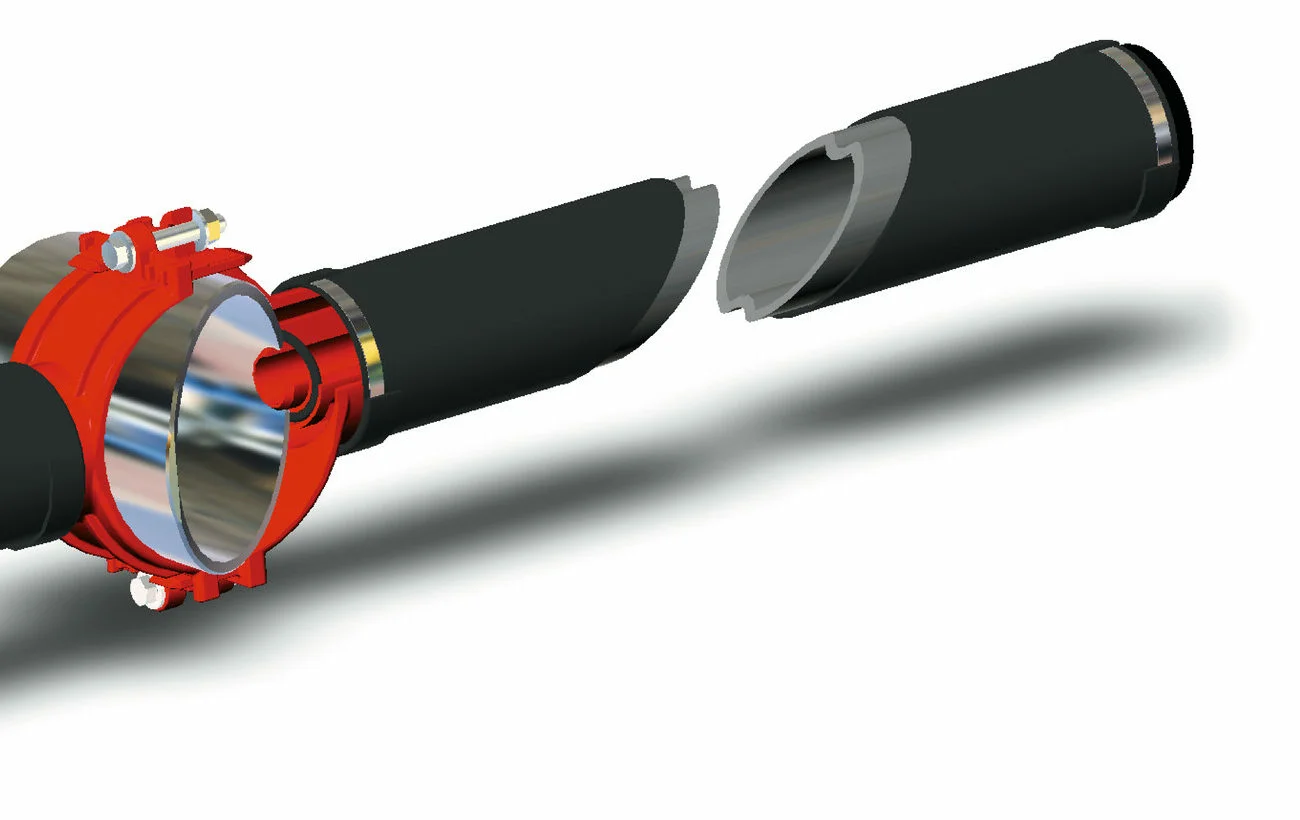

The TD 65 and TD90 Tube Diffusers are equipped with two grooves along the top and the bottom of the support.
Section 1:
In operation
Section 2:
Shutt off
Support pipe with grooves
HD Series

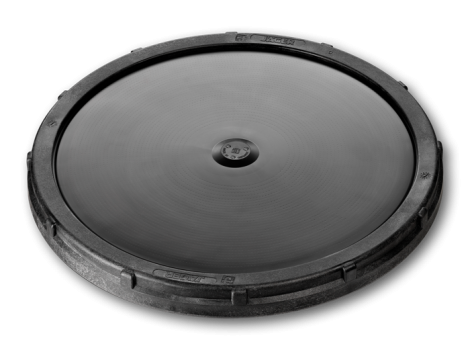

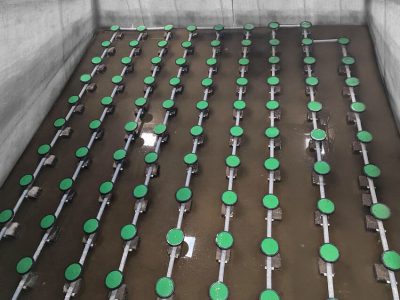

The JetFlex HD disc diffuser is a proven system for fine bubble aeration in industrial and municipal wastewater treatment plants worldwide. If you have low cost, solid efficiency and long life cycle as key requirements, the JetFlex HD is the perfect choice.
Top Facts
Worldwide use in wastewater treatment plants
Cost, efficiency, life cycle
Adaptability to operating conditions
Different membrane materials available
Robust design, easy installation
We offer a wide range of slot patterns that can be specifically customized to meet the individual operating requirements and conditions of your wastewater treatment plant. This ensures optimal aeration and maximum efficiency at a low operating pressure.
The JetFlex HD offers you an extensive choice of connection options for steel and plastic pipes. This gives you the flexibility to seamlessly integrate the disc diffuser into your existing piping system.
We offer various high-quality membrane materials such as EPDM, silicone and PUR. This allows you to select the right material for your specific requirements and get a reliable and durable aeration solution.
The JetFlex HD disc diffuser offers you the optimal combination of performance, efficiency, a low pressure loss and durability. With its customizable slot patterns, wide range of connection options and high-quality membrane materials, it can be the ideal solution for your wastewater treatment plant. Don’t hesitate to contact us to learn more about the JetFlex HD and its benefits.
Do you have questions about our products or need more information? We are here to help you! Our dedicated team is available to answer all your concerns and provide you with the information you need. Whether you need detailed product information, would like technical specifications, or would like to request a custom quote, we are here to help.
Top Facts
High mixing performance
Installation in the sand trap or as post aeration
Large air volumes through the diffuser
Low oxygen concentrations

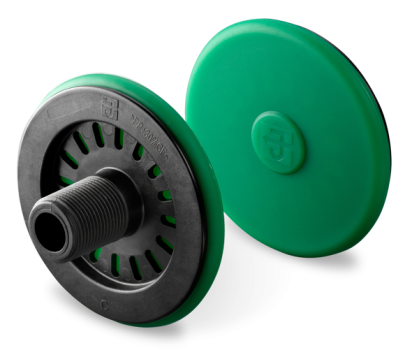

With a diameter of 105 mm, it offers the ideal size for effective aeration. Thanks to its high-quality silicone membrane and glass fiber-reinforced plastic, the JetFlex CBD is extremely robust and resistant to mechanical, chemical and thermal influences. You can count on a long service life and reliable performance. For even more flexibility, the optional check valve is available. It prevents water from flowing back into the aeration system and ensures continuous and efficient aeration. The JetFlex CBD is perfect for intermittent operation. It can easily adapt to the changing demands of your wastewater treatment plant and ensure reliable aeration. With the JetFlex CBD you get a first-class solution for the aeration of your wastewater treatment plant. The combination of optimum size, robust design, optional check valve and suitability for intermittent operation makes it the perfect choice.
Wind turbines are continuously achieving larger dimensions in order to reach higher energy yields. As the power of wind turbines rises, so do the demands on the gearboxes, rotor blades, towers and, above all, the components of the wind turbines themselves.
These requests focus on durability, efficiency and functional safety. With customized polymer-based materials and components, we support wind turbine manufacturers and their suppliers to reach these goals. We provide a diverse portfolio of components for rotor blade manufacturing, nacelle and hub, tower construction, and transportation and cargo safety.
Our components are reliably dimensioned and made of high-quality, tested materials that are essential in the production of high-performance rotor blades with a long service life.
Top Facts
Customized polymer-based materials
Broad component portfolio
Reliably dimensioned components
High-quality materials
High-quality materials
Discover our extensive range of hose assemblies, flow aids and accessories for vacuum infusion. We offer plastic hose assemblies in various sizes and made of different materials to meet your individual requirements. Our selection also includes
In addition, we offer compensation bags to help you with vacuum infusion. All components are carefully assembled and can be installed as a set according to your specific requirements. Rely on high-quality products to help you achieve efficient vacuum infusion.
Our company offers high-quality seals and profiles for rotor blade production. Specially designed for the production of FRP elements, our products offer optimal performance and reliability. We use special profiles made of high-quality silicone, butyl or EPDM, which are perfectly adapted to the requirements of rotor blade manufacturing. These profiles ensure effective sealing and enable precise assembly of the GRP elements. With our high-quality selection of seals and profiles, you can be sure that your rotor blades will be durable, energy efficient and reliable. Rely on our products to take your rotor blade manufacturing to the next level.
